Wilshire Grand Center
COUNTRY
CITY
YEAR
FEET
METERS
USA
LOS ANGELES
2017
110
335

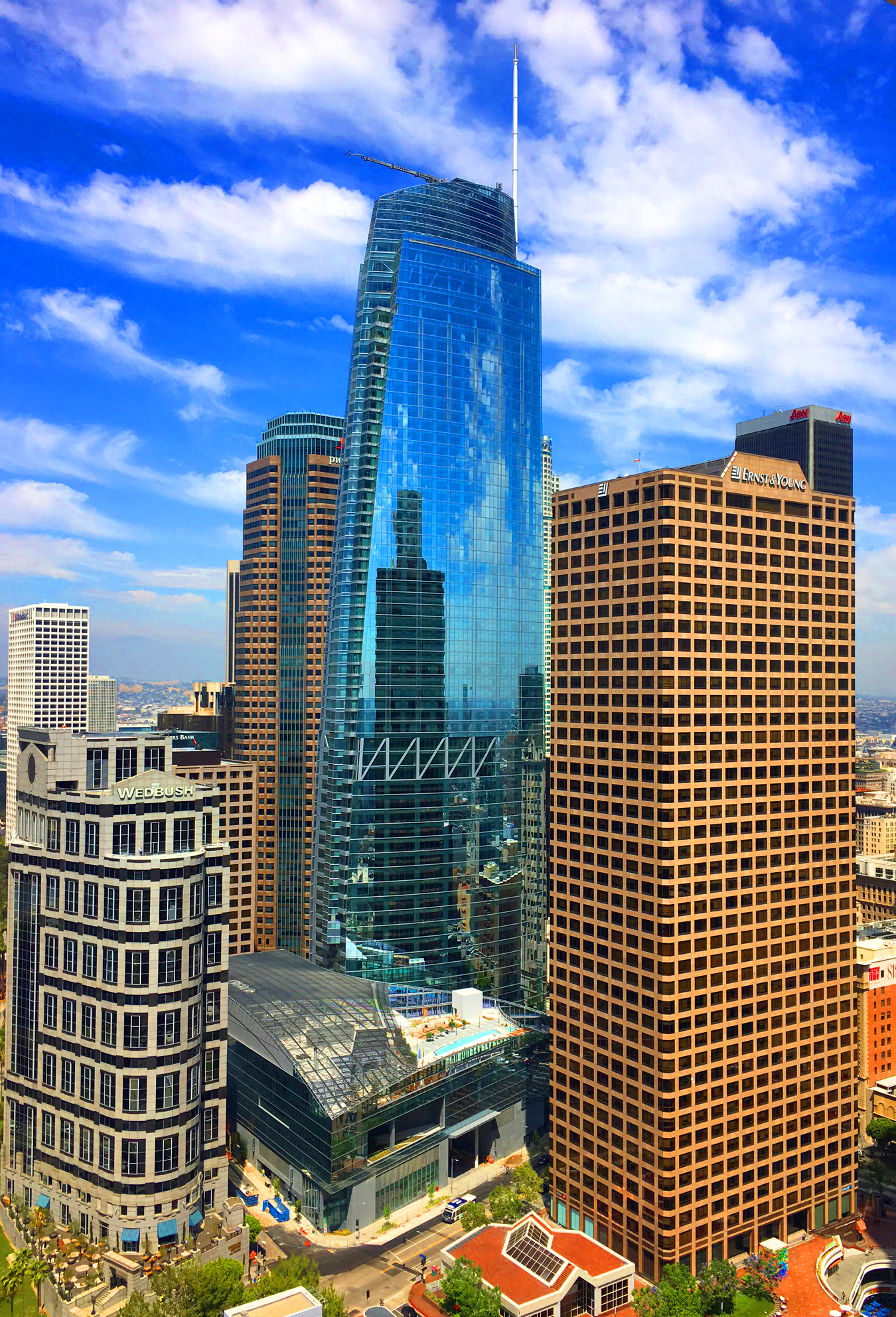

Wilshire Grand Center is a 1,100-foot (335.3 m) skyscraper in the Financial District of Downtown Los Angeles, California, occupying the entire city block between Wilshire Blvd. and 7th, Figueroa and Francisco streets. It is the tallest building in Los Angeles, the tallest building in California, the tallest building west of the Mississippi River and outside of New York City, Chicago, and Philadelphia, and the 11th tallest building in the United States.
The building is part of a mixed-use hotel, retail, observation decks, shopping mall, and office complex, expected to revitalize downtown Los Angeles and the area surrounding the building.
ARCHITECTURAL MARVEL IN THE CITY OF ANGELS
The Wilshire Grand Center stands as a testament to modern architectural innovation and engineering prowess in the heart of Los Angeles. This skyscraper not only dominates the city’s skyline but also showcases several unique features that set it apart from other high-rise structures.
FOUNDATION AND SEISMIC DESIGN
Built in a seismically active region, the Wilshire Grand Center incorporates state-of-the-art earthquake resistance technology. Its foundation required the largest continuous concrete pour in history, with 21,200 cubic yards of concrete laid over an 18-hour period. The building’s core utilizes a high-strength concrete mix, capable of withstanding compressive forces of up to 14,000 psi, ensuring stability during seismic events.
INNOVATIVE SAIL-SHAPED CROWN
One of the most distinctive features of the Wilshire Grand Center is its sail-shaped architectural crown. This design element not only adds aesthetic appeal but also serves functional purposes. The crown houses a cutting-edge tuned liquid damper system, which helps mitigate wind-induced motion and enhances the building’s overall structural performance.
ENERGY EFFICIENCY AND SUSTAINABILITY
The Wilshire Grand Center boasts impressive sustainability credentials. Its glass facade features a high-performance, triple-glazed curtain wall system that significantly reduces solar heat gain while maximizing natural light penetration. The building also employs an advanced water reclamation system, capable of recycling up to 50,000 gallons of water daily for non-potable uses.
VERTICAL TRANSPORTATION SYSTEM
The skyscraper’s elevator system is a marvel of modern technology. It features destination-dispatch elevators that use artificial intelligence to optimize travel times and energy consumption. The system can transport passengers at speeds of up to 1,600 feet per minute, making it one of the fastest in North America.
STRUCTURAL ENGINEERING CHALLENGES
Constructing the Wilshire Grand Center presented unique engineering challenges. The building’s core-to-perimeter framing system utilizes a combination of steel and concrete, known as a composite structural system. This innovative approach allowed for column-free corners, maximizing usable floor space and offering unobstructed views of the Los Angeles cityscape.
IMPACT ON LOCAL BUILDING CODES
The development of the Wilshire Grand Center led to significant changes in Los Angeles building regulations. It was the first skyscraper in the city permitted to forego a flat roof and helipad, traditionally required for fire safety. Instead, the building incorporates alternative safety measures, including enhanced elevator systems for firefighters and dedicated fire-resistant refuge floors.
