Petronas Twin Tower 1&2

COUNTRY

City

YEAR

FEET

METERS

MALAYSIA

KUALA LUMPUR

1998

1483

452

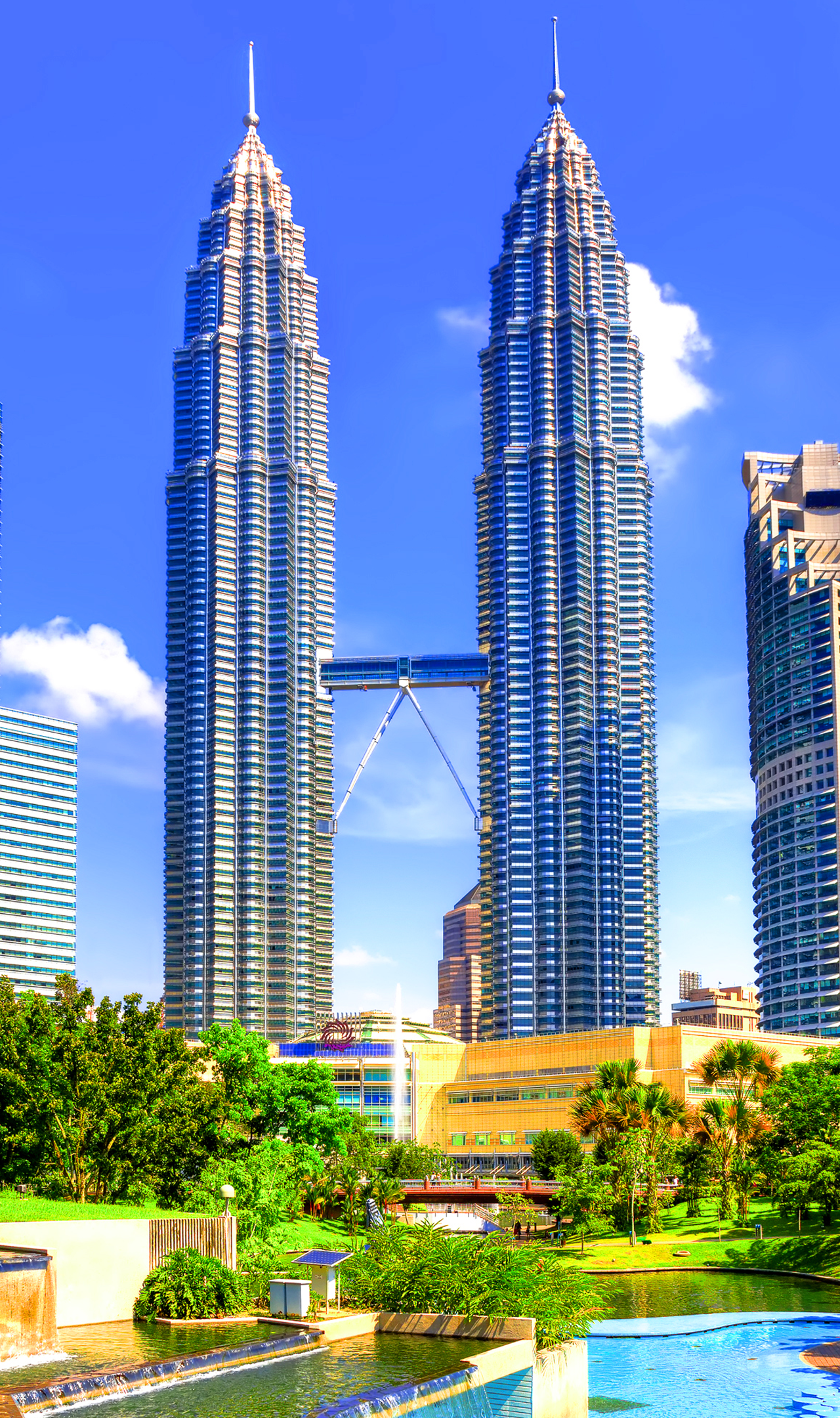

ARCHITECTURAL MARVEL: PETRONAS TWIN TOWERS

The Petronas Towers, also known as the Petronas Twin Towers, are twin skyscrapers. According to the Council on Tall Buildings and Urban Habitat (CTBUH)’s official definition and ranking, they were the tallest buildings in the world from 1998 to 2004 and remain the tallest twin towers in the world. The buildings are a landmark of Kuala Lumpur.

The 88-floor towers are constructed largely of reinforced concrete, with a steel and glass facade designed to resemble motifs found in Islamic art, a reflection of Malaysia’s Muslim religion. Another Islamic influence on the design is that the cross section of the towers is based on a Rub el Hizb, albeit with circular sectors added to meet office space requirements.

The towers were designed by Argentine architect César Pelli. A distinctive postmodern style was chosen to create a 21st-century icon for Kuala Lumpur, Malaysia. Because of the depth of the bedrock, the buildings were built on the world’s deepest foundations.

STRUCTURAL INGENUITY

The Petronas Twin Towers stand as a testament to structural engineering prowess. Each tower’s core is constructed using high-strength reinforced concrete, a departure from the steel frame construction typical of many skyscrapers. This innovative approach provides exceptional stiffness and stability, crucial for withstanding the strong winds that can buffet tall structures in Kuala Lumpur’s tropical climate.

FOUNDATION CHALLENGES

Building the world’s tallest twin towers presented unique foundation challenges. The site’s soft bedrock necessitated the use of the world’s deepest foundations at the time. Engineers employed 104 concrete piles, each extending 400 feet (120 meters) deep, to anchor the massive structures securely. This foundation system ensures stability and minimizes differential settlement between the towers.

SKYBRIDGE ENGINEERING

The iconic skybridge connecting the towers at the 41st and 42nd floors is a marvel of engineering in itself. Designed to slide in and out of the towers to accommodate movement caused by high winds and seismic activity, the bridge is not rigidly attached to the main structures. This flexibility allows for a 2-foot (0.6 meter) sway without compromising structural integrity.

ELEVATORS AND VERTICAL TRANSPORTATION

The Petronas Towers boast a sophisticated elevator system designed to efficiently move thousands of people daily. With 78 elevators, including double-decker lifts, the system can transport passengers at speeds of up to 7 meters per second. The elevator shafts incorporate advanced pressure management systems to prevent the “piston effect” common in ultra-tall buildings.

FACADE DESIGN AND ENERGY EFFICIENCY

The towers’ distinctive stainless steel and glass facade serves both aesthetic and functional purposes. The specially designed curtain wall system incorporates high-performance glass that reflects heat while allowing natural light to penetrate, significantly reducing energy consumption for cooling and lighting. The facade’s geometric patterns, inspired by Islamic motifs, are not merely decorative but contribute to the building’s overall structural integrity.

CONSTRUCTION TECHNIQUES

The construction of the Petronas Towers introduced several innovative techniques to Malaysia. The use of high-strength concrete (grade 80) was pioneered for this project, requiring specialized mixing and pouring methods. Additionally, the construction teams employed a “top-down” building method for the basement levels, allowing simultaneous work above and below ground to expedite the construction timeline.

WIND ENGINEERING

Extensive wind tunnel testing was conducted to optimize the towers’ design against wind loads. The tapered and setback design of the upper floors, combined with the towers’ octagonal floor plan, helps to disrupt wind vortices and reduce lateral forces on the structures. This aerodynamic design contributes significantly to the towers’ stability in high winds.

MAINTENANCE AND LONGEVITY

The Petronas Towers incorporate numerous features designed for long-term maintenance and sustainability. The facade includes an integrated window washing system with built-in tracks, allowing for efficient cleaning of the expansive glass surfaces. Additionally, the structural health of the towers is continuously monitored through a network of sensors that detect any unusual movements or stresses.
