ENGINEERING MARVEL

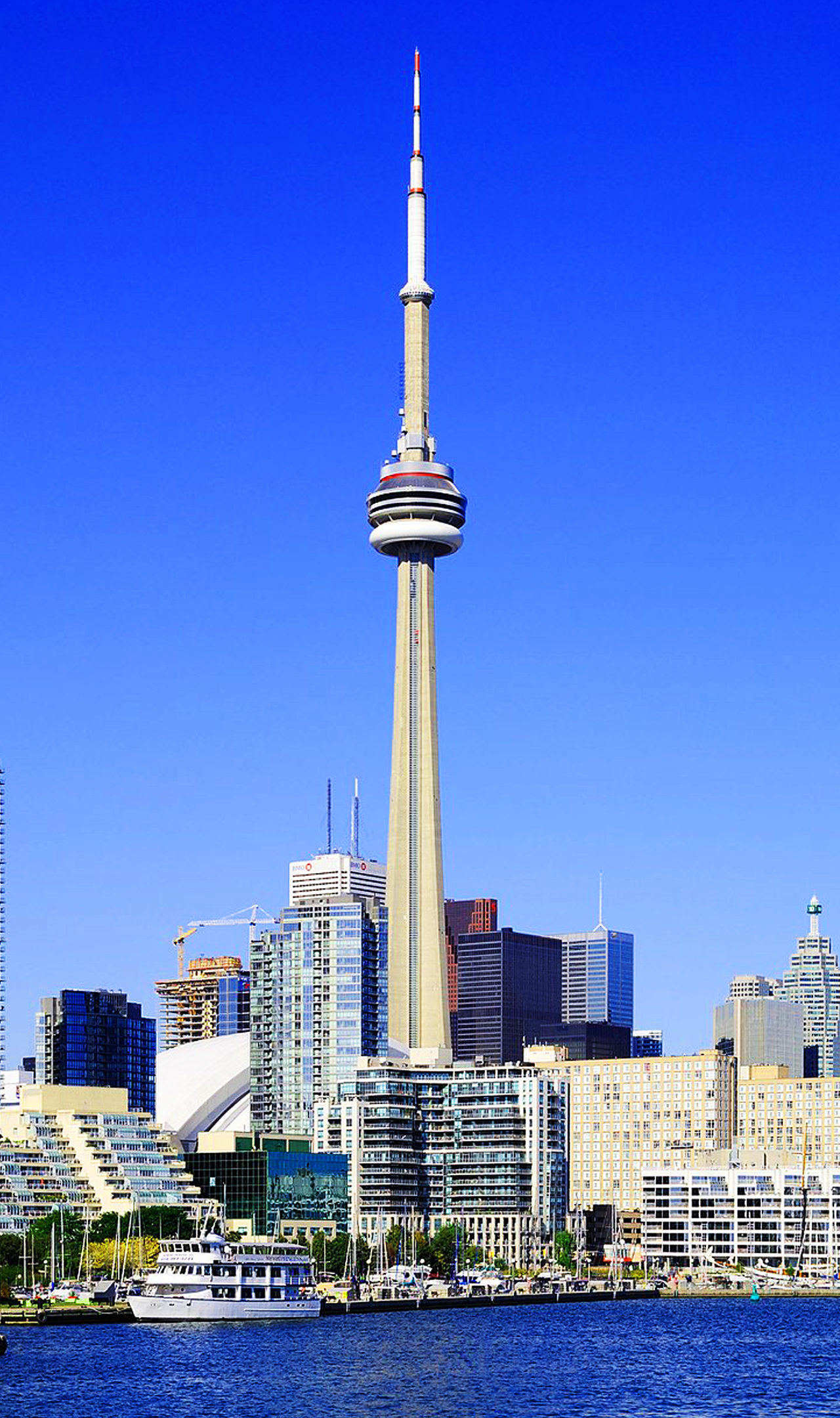

The CN Tower is a 553.3 m-high (1 815 ft) concrete communications and observation tower located in Downtown Toronto, Ontario, Canada. Built on the former Railway Lands, it was completed in 1976. Its name “CN” originally referred to Canadian National, the railway company that built the tower.

The CN Tower held the record for the world’s tallest free-standing structure for 32 years until 2007 when it was surpassed by the Burj Khalifa. It is now the ninth tallest free-standing structure in the world and remains the tallest free-standing structure in the Western Hemisphere. In 1995, the CN Tower was declared one of the modern Seven Wonders of the World by the American Society of Civil Engineers.

The CN Tower stands as a testament to innovative engineering and construction techniques. Its unique design and structural integrity continue to fascinate experts in the field of architecture and civil engineering.

FOUNDATION AND STRUCTURE

The tower’s foundation is a crucial element of its stability. A massive concrete and steel base, weighing approximately 35,000 tons, anchors the structure securely to the bedrock. This foundation is designed to withstand seismic activity and high winds, ensuring the tower’s longevity.

CONSTRUCTION TECHNIQUES

One of the most remarkable aspects of the CN Tower’s construction was the continuous concrete pour technique used for its main shaft. This method involved pouring concrete continuously for 24 hours a day, five days a week, for eight months. The result was a seamless concrete core that forms the tower’s primary support structure.

SLIP-FORM CONSTRUCTION

The tower utilized an innovative slip-form construction method. This technique involved using a continuously moving form that rose as concrete was poured, allowing for efficient and precise construction of the tower’s tapered shape.

HIGH-STRENGTH CONCRETE

The CN Tower’s structure primarily consists of high-strength concrete, carefully engineered to withstand extreme weather conditions and the test of time. The concrete mix was specially designed to achieve optimal strength and durability.

POST-TENSIONING SYSTEM

To enhance the tower’s structural integrity, a sophisticated post-tensioning system was implemented. This system uses high-strength steel cables running through the concrete core, which are tensioned to provide additional strength and stability to the structure.

AERODYNAMIC DESIGN

The tower’s distinctive shape is not just for aesthetic purposes. Its tapered design and rounded edges help minimize wind resistance, allowing the structure to withstand wind speeds of up to 418 km/h (260 mph).

TUNED MASS DAMPER

A 9-ton tuned mass damper is installed at the top of the tower to counteract wind-induced oscillations. This ingenious device helps reduce the tower’s sway by up to 40%, ensuring comfort for visitors and structural stability.

LIGHTNING PROTECTION

The CN Tower serves as a lightning rod for the surrounding area, with its advanced lightning protection system capable of handling up to 75 lightning strikes per year. This system not only protects the tower but also helps safeguard nearby buildings.

COMMUNICATIONS HUB

As a communications tower, it houses a complex array of broadcasting equipment. The tower’s height and location make it an ideal platform for transmitting signals across the Greater Toronto Area and beyond.
